FRANKENSTEIN 34" HOT ROD 250 Trike Rear end.

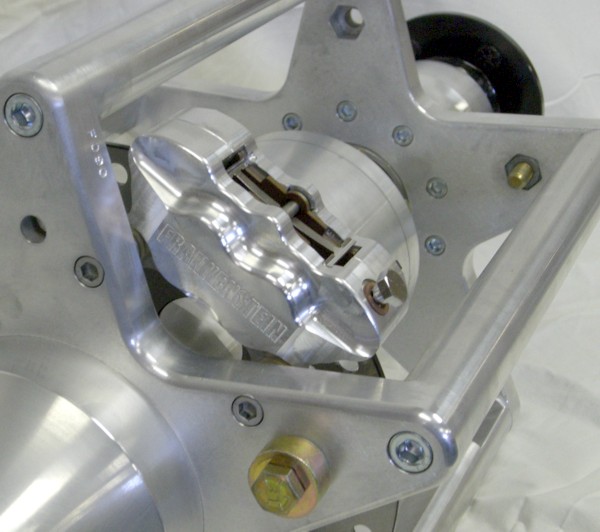

It is made from 6061 T6 Billet Aluminum, has Dana differential, 9" Ford Street / Strip axles with a bolt pattern of 5 studs on 4 bolt circle, wheel studs are - 20 (Ford car), weighs 102 pounds and is 34" wide, Machine finish with HHI 4 piston caliper and stainless steel rotor

One year unlimited miles from date of purchase.

FOR MORE INFO, CALL US,  Ph: 913-352-6788 or E- mail us at
34" HOT ROD 250

Trike rear ends for bikes with stock rear tire size up to 250,
sprocket/pulley mounting surface is 5 1/4" from center.

EXTRA WIDE CENTER, 34" wide for installation on 250 tire bikes. We recommend using 10" wide wheels with 3 1/4" to 3 1/2" back spacing  with this rear end.

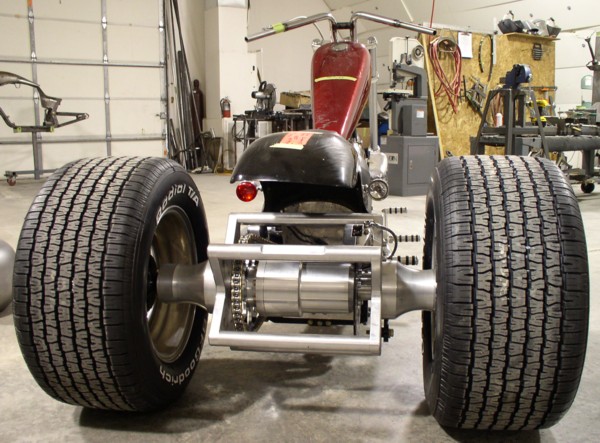

Picture below shows this rear end installed on 240 tire, left side drive, American Ironhorse, no need to move transmission.



Click on Trike for more pictures.

Add for Outboard Brakes.

If you have recently purchased a rear end and would like to upgrade to Outboard Brakes

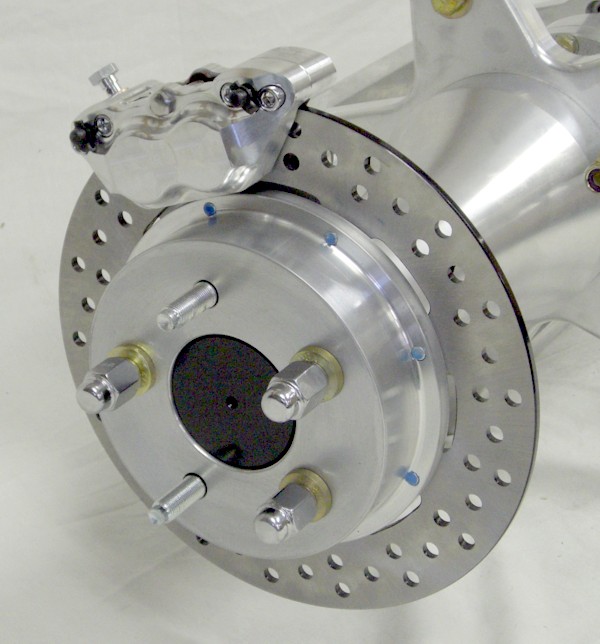

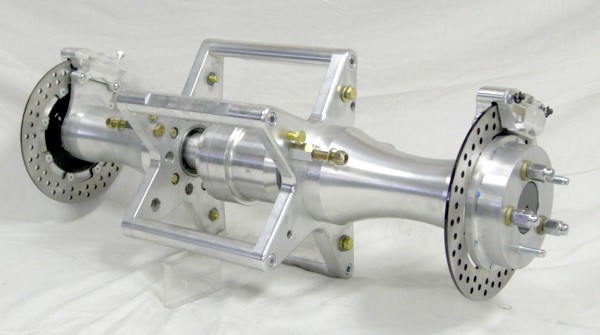

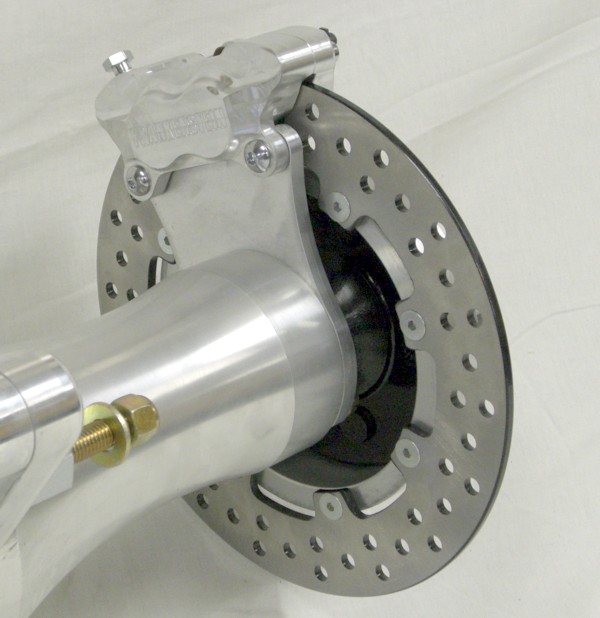

Outboard Brakes shown mounted on rear end.
