Frames

We are currently not building frames at this time.

All of our resources are being used to build the Frankenstein Trike kits. Please check back to see if we ae building frames.

Thanks for your support,  Frank Pedersen.

STREETFIGHTER FRAME.*Patented*

Rigid Frames for Sportster and Buell engines.
*Patented*

Frames fits Sportster engines from 1991 thru 2003,
and Buell engines from 1995 thru 2002.

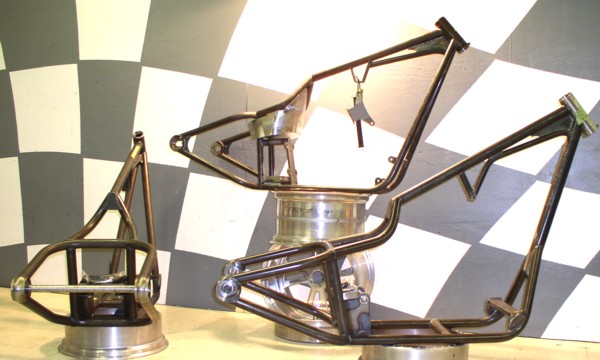

Sportster / Buell rigid frames available in four standard styles:

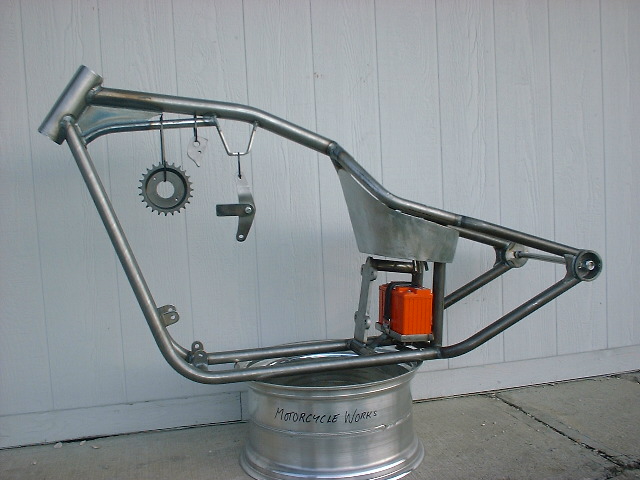

" XL Streetfighter" frame accepts Buell or Sportster Hugger front-end, neck is set at  1 1/2" down, 1" back, 35 degree rake.


" 2 up XL Digger" neck is set at 2" up, 2" fwd. 40 degree rake.


" 5 up XL Chopper"
neck is set at
5" up, 1" fwd. 38 degree rake.


 "8 up XL Chopper"
neck is set at  8" up, 3" fwd. 40 degree rake.

Special rake or stretch available, add $300.-

Rigid XL/Buell 180/200 tire frame, for 1991 thru 2003 Sportster and 1995 thru 2002 Buell engines. $2530.00

Rigid XL/Buell 240/250 tire frame, without offset sprocket, buyer supplies offset sprocket, for pre 1991 Sportster engines $2530.00

Rigid XL/Buell 240/250 tire frame, for 1991 up engines $2650.00

Rigid XL/Buell 280/300 tire frame, for 1991 up engines $2900.00

Rigid XL/ Buell 330 tire frame, for 1991 up engines $3000.00

 Frame comes with: Rear axle, Battery box w. strap, Oil tank w. cap, Kickstand tab welded on, Top bolt on engine mount, Fork stop, and Offset sprocket "if it is 240 or 280/300 frame". 280/300 and 330 tire frame kit also comes with sprocket outboard bearing support.
We only have offset sprockets for '91 and up Sportster and Buell.

ALL SPORTSTER FRAMES MADE FROM MILD STEEL TUBING 1 1/4" Dia. 0.140" Wall thickness, Backbone 1 5/8" Dia. 0.188" Wall thickness.

All frames are T.I.G. welded by certified welders, no grinding or filling necessary.

Our frames accept Sportster engines from 1991 thru 2003 and Buell engines from 1995 thru 2002.
Specify year and model when ordering.

Center of engine sits 1/8" over to the right from center of frame, for near perfect balance, and clears 200 tire with no additional offset sprocket or pulley.

Belt drive Sportsters or Buells with 27 tooth front pulley and 61 tooth rear pulley needs 135 tooth belt, with 29 tooth front pulley and 61 tooth rear pulley, use 136 tooth belt. Both belts available from us.
When using stock Buell rear wheel, you must install 1/4" spacer between pulley and wheel.

240 and 280/300 tire frames comes with offset sprocket.

Our frames use 1986 or newer Sportster front engine mounts, and use "Sportster Custom" type forward controls, CCI part # 17546 chromed, also available thru Midwest, Mid USA, Drag and V-Twin.

Buell engines need Sportster sprocket cover and master cylinder.
Sprocket cover must be spaced out 9/16" when 240 tire offset sprocket is used.

Big Twin forward control brackets available for additional $120.00

Use exhaust that clear forward controls (if used).
For custom exhaust check out www.pipedreamz.biz and www.wickedbros.com

Use Sportster kickstand for 1957 to 1981 (1" shorter than stock) and 5/16" bolt to hold kickstand spring. Kickstand available from us, $55.00

Frames accept points covers for axle caps.

Frames for EVO engines comes with top engine mount that will hold coil.

Frames available with tank and fender mounted:

Big Twin forward control brackets $120.00

Teardrop Streetfighter tank mounted $1200.-
Chopper tanks mounted $750.- to $1200.-
9" , 11" or 13" rear fender mounted $900.-
Seat pan mounted $250.-
Seat pan not mounted $100.-

FRAMES.


FRAMES FOR BIG TWIN,  280/300 Tire.

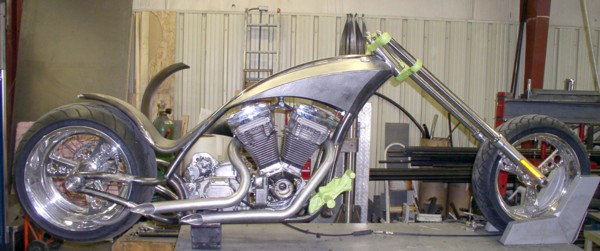

DO YOU WANT TO BUILD A 330 OR 360 TIRE BIKE OR RADIUS TUBE FRAME?
SEE PRICING BELOW.

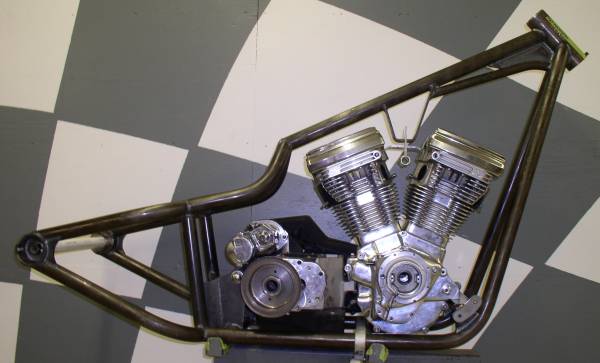

RIGHT SIDE DRIVE, DROPSEAT, RIGID FRAMES, for Right Side Drive 5 or 6 Speed Dyna Transmissions, Solid mounted.*Patented*

ACCEPTS UP TO 300 TIRE, AND IS PERFECTLY BALANCED! Price starting at
$2800.00
for 280 / 300 tire frame without radius tubes.

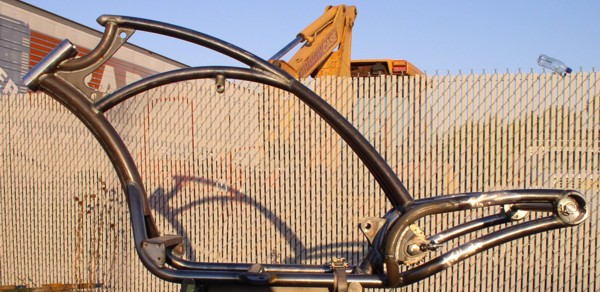

Radius "Knife edge" single downtube, add $400.-
Radius rearsection lower hoop, add $300.-
Radius rearsection upper hoop, add $300.-
Radius double backbone, add $300.-
Dropped neck, add $200.-
330 tire frame, add $100.-

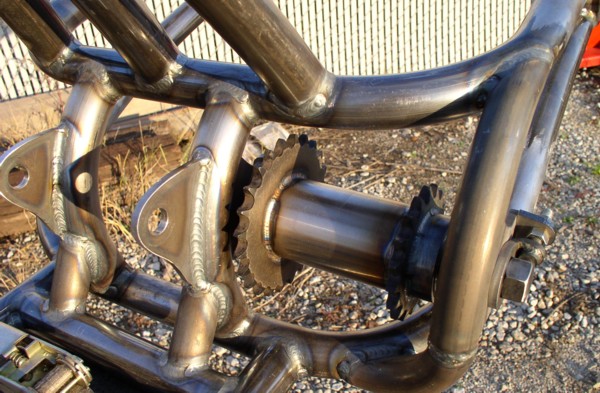

360 tire Left Side Drive frame with Jackshaft, add $700.-

WE ALSO BUILD GAS TANKS, TAIL SECTIONS, ETC. CALL FOR PRICING.

Available in any rake or stretch.

Right Side Drive Dyna style transmissions available in 5 or 6 speed, Roadmax or Baker,  polished, starting at $1800.-

Made from 1 1/2" diameter .156" wall, mild steel tubing. Backbone 1 5/8" diameter .188"  wall mild steel tubing. T.I.G. welded by certified welders.

The mass in this big frame absorbs vibrations from big engines.

Possibly the strongest motorcycle frame in the industry.




Rigid Frames for Sportster and Buell engines.
*Patented*

Frames fits Sportster engines from 1957 thru 2003,
and Buell engines from 1995 thru 2002.

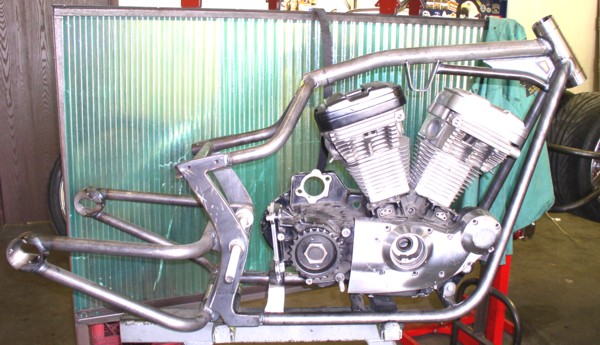

WE ARE NOT CURRENTLY BUILDING SOFT TAIL FRAMES FOR
SPORTSTERS AND BUELLS.
Dropseat soft tail Frame for 200 tire $
Dropseat soft tail Frame for 240 tire $
Dropseat soft tail Frame for 300 tire $
